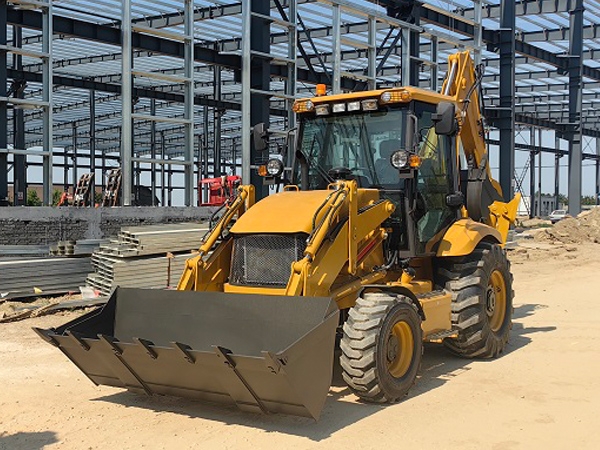

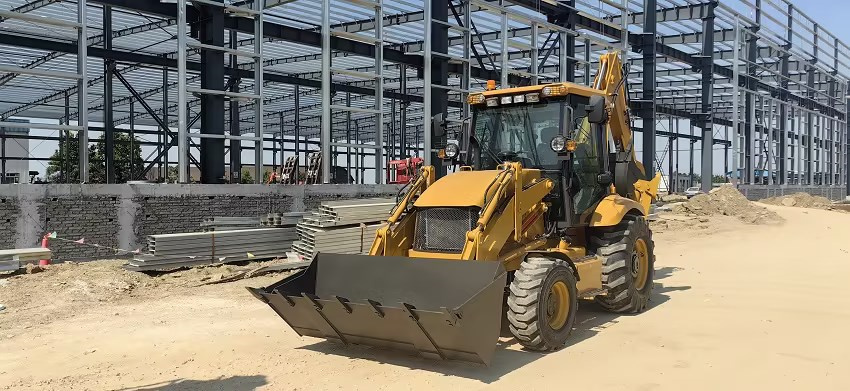

SHANMON388挖掘装载机

山东威猛工程机械有限公司

公司地址：山东省青州市南环路9567号

2019-12-3

800

信息详情

一、主要特点：main feature

1.采用高可靠性的液力变矩器和变速箱提供超强动力，加重工程专用桥行走平稳、可靠性高。The use of high-reliability hydraulic torque converter and Gearbox to provide super power, aggravated the smooth and high reliability of the dedicated bridge walking

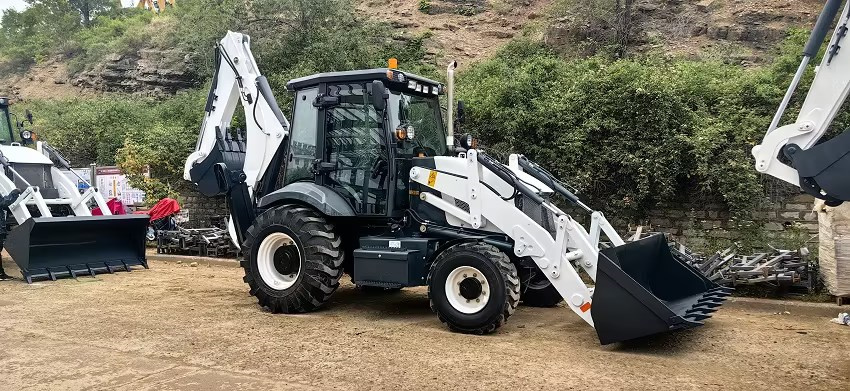

2.将挖掘机和装载机两机合为一体，一机多能。完全具备小型挖掘机和装载机的所有功能，更适合在狭窄空间作业，方便灵活，工作效率提高30%以上。Combine the excavator and the loader into one, and one machine can do more. Fully equipped with all the functions of small excavators and loaders, it is more suitable for operating in a narrow space, convenient and flexible, and working efficiency is increased by more than 30 %.

3.挖掘、装载功能全部先导控制，轻便灵活，作业效率高。Mining, loading function all lead control, light and flexible, high operating efficiency.

4.人性化设计旋转减振座椅，全钢化成型玻璃驾驶室，视野更宽阔，驾驶更舒适。Humanized design of rotating vibration absorber seat, fully steel-molded glass cab, wider vision, more comfortable driving.

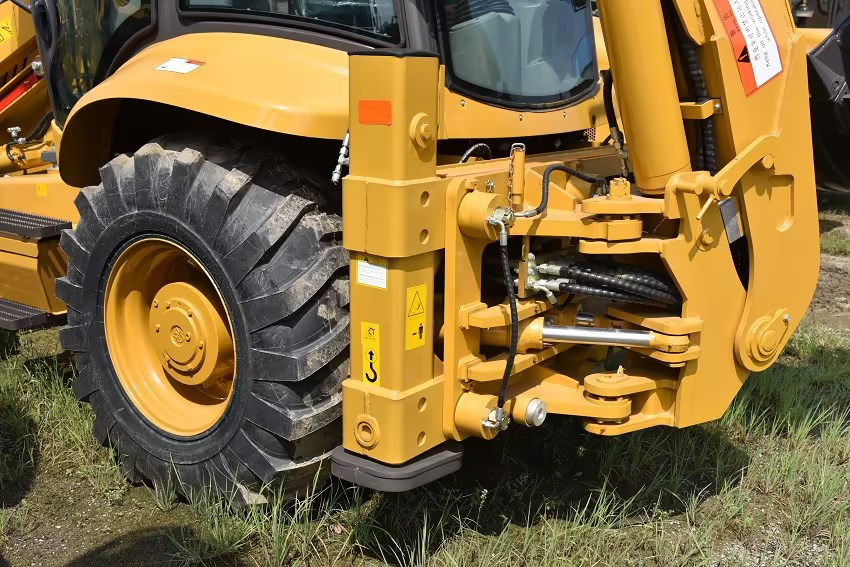

5.挖掘可侧向滑移机构装置，使挖掘作业范围更大，效率更高。Excavate the lateral sliding mechanism device to make the excavation operation more extensive and more efficient.

6.前翻式护罩的设计，大大提高了整机的维护性。The design of the front flip cover greatly improves the maintenance of the entire machine.

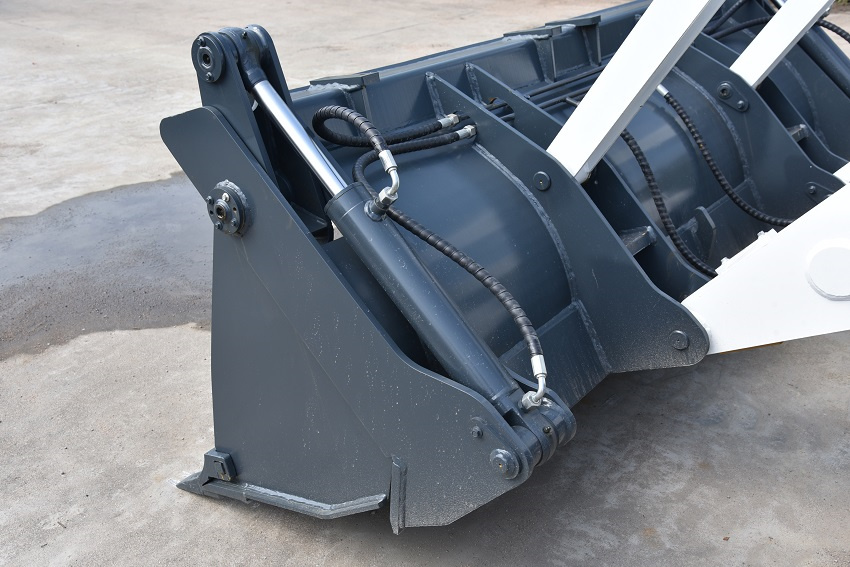

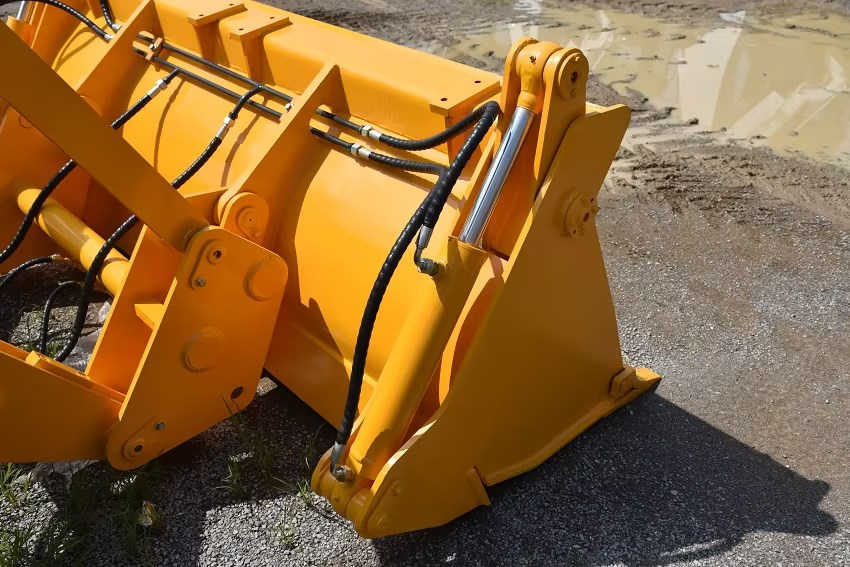

7.可选配多种附具装置，完成多种施工作业。用于市政、建筑、水利、公路、自来水、供电、园林等部门，可从事农业建筑，管道铺设，电缆敷设，园林绿化等作业。A variety of accessories can be selected to complete a variety of construction operations. For use in municipal administration, construction, water Conservancy, highways, tap water, power supply, gardens and other departments, can be engaged in agricultural construction, pipeline laying, cable laying, landscaping and other operations

二、SAM388技术参数 The Main Performance Parameter of Backhoe Loader SAM388
整机操作重量Overall Operating Weight	8200KG	轮边减速型式Final Reducer	一级轮边减速Single Stage Final Reducer
运输尺寸Transport Dimension		额定桥载荷Rated Loader of Axle	8/18.5t
长×宽×高mm LWH	6120×2410×3763
驾驶室到地面高度cab to ground mm	2900mm	传动系统Transmission System
轴距 Wheel base	2248mm	变矩器Torque Converter
Z小离地间隙 Min. Ground Clearance	300mm	型号Model	YJ280
装载斗容 Bucket Capacity	1.0m3	型式Type	单级、单相三元件Single-stage Three Elements
掘起力Breakout Force	38KN	Z高效率Max. Efficiency	84.4%
装载举升能力Loading Lifting Capacity	2500KG	变速箱Gearbox
铲斗卸载高度Bucket Dumping Height	2700mm	型式Type	定轴式动力换档Fixed Shaft Power Transmission
铲斗卸载距离Bucket Dumping Distance	925mm	离合器操纵油压Oil Pressure of Clutch	1373Kpa—1569 Kpa
铲挖深度 Digging Depth	52mm	档位数Gears	前进2档，后退2档Two Gears Ahead, Two Gears Astern
反铲斗容Backhoe Capacity	0.3 m3	Z高车速Max.Speed	28Km/h
Z大挖掘深度Max. Digging Depth	4082mm/4500mm/ 5300mm	轮胎Tyre
挖斗回转角Swing Angle of Excavator Grab	190o	规格Model	14-17.5/19.5L-24
Z大牵引力Max. Pulling Force	39KN	前轮气压Pressure of Front wheel	0.55Mpa
发动机Engine		后轮气压Pressure of Back Wheel	0.223Mpa
型号Model	CYD YC4A105Z-T20	制动系统Brake System
型式Type	直列、直喷、四冲程、直喷燃烧室In Line Direct injection Four-Stroke and Injection Combustion Chamber	驻车/紧急制动Emergency Brake	操纵力实施制动Operation Power Implementing brake
气缸数-内径行程Cylinder-Inside DiameterStroke	4-108×132		手操纵力解除制动Manual Operation Power Terminating Brake
额定功率Rated Power	75KW	行车制动Service Brake	气顶油钳盘制动Air Over Oil Caliper Brake
额定转速Rated Speed	2200r/min		外置式External Type
Z低燃油率Min. Fuel Consumption	≤230g/km.h		自调节Self-regulation
Z大扭矩Max.Torque	≥400N.M		自平衡Self-balance
排量Displacement	4.837L	液压系统Hydraulic System
转向系统Steering System		挖斗挖掘力Digging Power of Excavator Grab	46.5KN
转向器型号Model of Steering Device	BZZ5-250	斗杆挖掘力Digging Power of Dipper	44KN
转向角Steering Angle	±36 o	铲斗提升时间Bucket Lifting Time	6．8S
Z小转弯半径Min. turning radius	6581mm	铲斗下降时间Bucket Lowering Time	3.1S
系统压力Pressure of the system	18Mpa	铲斗卸载时间Bucket Discharge Time	2.0S
驱动桥Axle
生产厂家Manufacturer	肥城Feicheng	主传动型式Main Transmission Type	双级减速式Double Reduction
