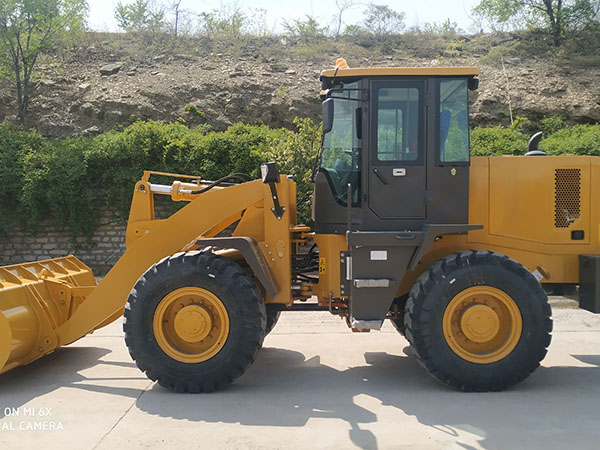

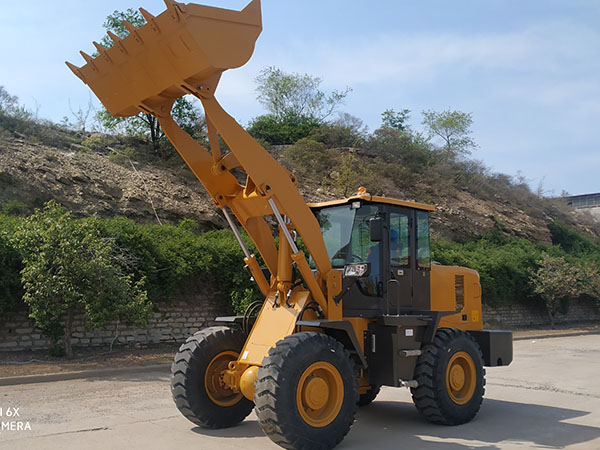

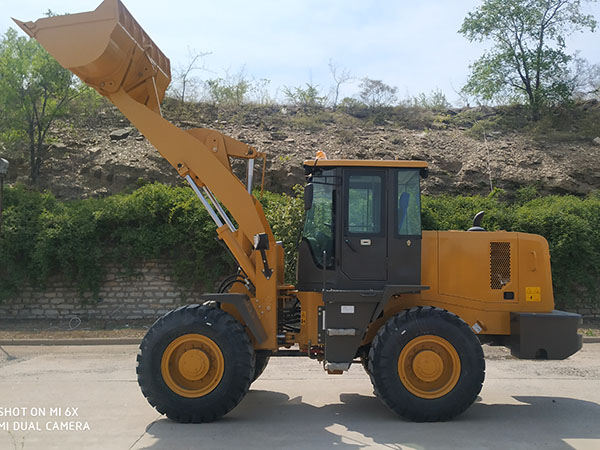

SHANMON836装载机

山东威猛工程机械有限公司

公司地址：山东省青州市南环路9567号

2019-12-7

878

信息详情

一、性能介绍：Performance description:

·潍柴发动机,优化变矩器匹配,大幅度提高牵引力,同时燃油消耗降低高达5%。Weichai emission engine, optimized moment converter match, greatly increase traction, while fuel consumption is reduced by up to 5 %
·加大铲斗,生产效率提高12%。12 per cent increase in productivity by increasing the number of shovels
·18Mpa工作液压系统压力。18 Mpa working hydraulic system pressure, efficient energy saving
·配重更大,负载能力更大。Greater weight and load capacity
·卸载高度提高到3.1米,等同于ZL50型。Increased unloading height to 3.1 M, equivalent to ZL50
·全新冷却系统设计,可满足-20~43℃环境温度要求。The new cooling system design can meet the requirements of -20 ~ 43 °C ambient temperature
·发动机安装增加减震装置,进一步改善驾驶室密封性,降低震动和噪音。Installation of additional shock absorbers to further improve cab sealing and reduce vibration and noise
·整机设计满足国家强制性噪音及安全标准要求。The whole machine design meets the National mandatory noise and safety standards requirements

二、技术参数Technical parameters

Performance	1	额定载重量 rated loading	3000kg
	2	整机重量 overall weight	9600kg
	3	斗容量 bucket capacity	1.8-2.5m3
	4	最大牵引力 maximum traction force	95KN
	5	最大掘起力 maximum breakout force	127KN
	6	最大爬坡能力 maximum grade ability	30℃
	7	最大卸载高度 maximum dump height	3100mm
	8	最大卸载距离 maximum dump reach	966mm
	9	整机外形尺寸 overall dimension (L×W×H)	689024303070mm
	10	最小转弯半径 minimum turning radius	5097mm
发动机Engine	11	型号model	Deutz enginesWP6G125E22
	12	型式type	直列、水冷、四冲程、直喷 Vertical, in-line, water cooled, 4-stroke diesel engine
	13	汽缸数-缸径行程NO. of cylinder-borestroke	6-108*125
	14	额定功率 rated power	92kw—2200r/min
	15	最大扭矩 maximum torque	500N.m
	16	最低燃油消耗率 min. fuel-consume ratio	≦210Kw/h
传动系统 Transmission system	17	变矩器型式 torque converter	YJ315-X
	18	变速箱型式 gearbox mode	定轴常啮合式 Power shaft normally engaged straight gear
	19	档位数 gears	前进档4个，倒退档2个 4 forward 2 reverse
	20	最高车速 maximum speed	40km/h
驱动桥Drive axles	21	主减速式： main reducing spiral	螺旋伞齿轮一级减速bevel gear grade 1reduction
	22	轮边减速型式 decelerating mode	一级行星减速 Planetary reduction grade 1
	23	轴距 wheel base (mm)	2740mm
	24	轮距 wheel tread	1800mm
	25	最小离地间隙 ground clearance	400mm
液压系统 Hydraulic system	26	系统工作压力 system working pressure	16,5MPa
	27	动臂提升时间 boom lifting time	4.83S
	28	三项和 total time	9.15±0.5s
制动系统 Brake system	31	行车制动 service brake	气顶油钳盘式四轮制动 air assist disc brake on 4 wheels
制动系统 Brake system	32	驻车制动 parking brake	手动嵌盘式 Manual disk brake
轮胎 Tyre	33	规格 type specification	17.5-25
	34	前轮气压 front tyre pressure	0.4Mpa
	35	后轮气压 rear tyre pressure	0.35Mpa
