SHANMON966装载机

SHANMON966装载机

山东威猛工程机械有限公司

公司地址:山东省青州市南环路9567号

2019-12-7 801

信息详情

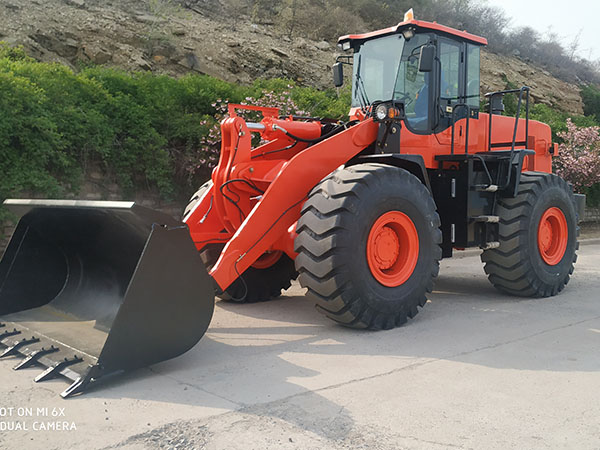

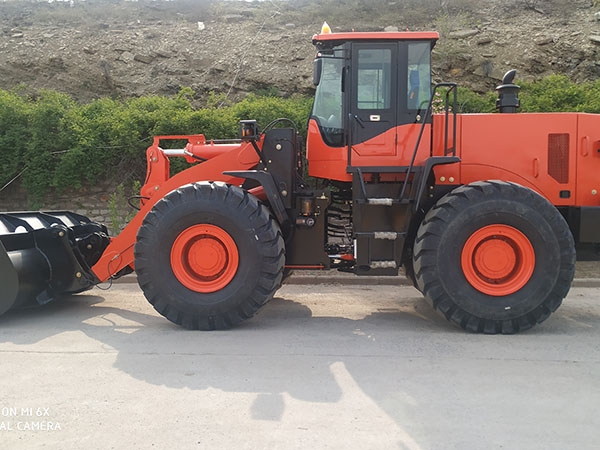

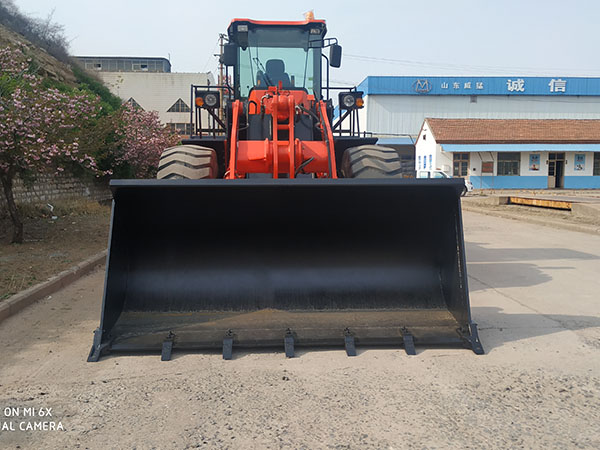

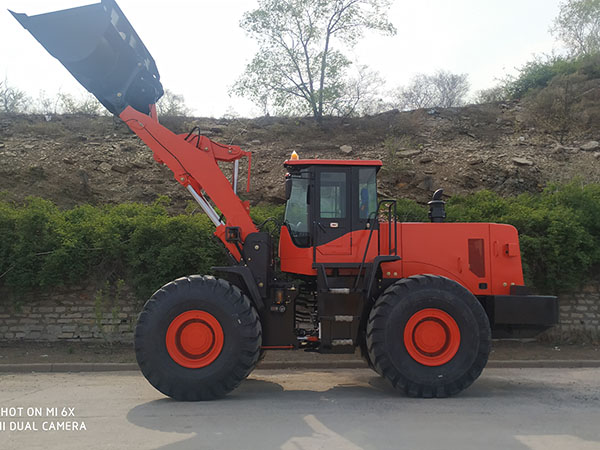

a整机照片01

一、主要特点:main feature

1、全液压先导操纵,轻便灵活,微动效果好。Full hydraulic pilot manipulation, lightweight flexible, micro excellent results.

2、双泵合流工作系统,同轴流量放大转向,节能效果显著。Double pump confluence working system, coaxial flow amplifying steering, energy-saving effect is remarkable.

3、先进的铲斗自动放平功能,操纵更加方便,降低了司机的劳动强度。dvanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.

4、大功率涡轮增压斯太尔发动机与加强加长型底盘和液压系统完美配合,性能更可靠,更节油。Advanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.

5、单翻斗缸,“Z”型转斗机构,实现巨大挖掘力。Single dump cylinders, "Z" type bucket mechanism, achieve huge digging force.

6、适合于重工况作业的驱动桥,齿轮模数大,针对大作业量恶劣工况设计,耐久性强。Suitable for the working condition of heavy homework drive axle, gear modulus, in view of the large production condition of design, strong durability.

7、加强型超大空间全景视野驾驶室,德国专业技术制造的弹簧减振优质沙发座椅,操作舒适安全。Enhanced large space of view cabin, Germany's professional manufacturing spring damping high quality sofa chair, comfortable and safe operation.

t;font-family:"Tahoma","sans-serif";mso-fareast-font-family: Tahoma;color:#434343;background:#F2F2F2'>Enhanced large space of view cabin, Germany's professional manufacturing spring damping high quality sofa chair, comfortable and safe operation.

<

性能Performance

1

额定载重量rated load

6000kg

2

整机重量overall    weight

18200kg

3

额定斗容量rated    bucket capacity

3.3m3

4

最大牵引力maximum    tractive force

158KN

5

最大崛起力maximum    breakout force

204KN

6

最大爬坡能力maximum    grade ability

30℃

7

最大卸载高度maximum    dump height

3217mm

8

最大卸载距离maximum    dump reach

1156mm

9

整机外形尺寸overall    dimension (L×W×H)

7965×3050×3470mm

10

最小转弯半径minimum    turning radius

70200mm

发动机Engine

11

型号model

潍柴 Weichai Steyr    WD10G240E21

12

型式type

直列\水冷\干缸套\直喷

     lnline     water cooling dry cylinder     injection

13

气缸数-缸径×行程No. of cylinder-bore/stroke

6-126×130mm

14

额定功率rated    power

175kw--2200r/min

15

最大扭矩maximum    torque

950N.m

16

最低燃油消耗率min    fuel-consume ratio

≤208g/kw.h

传动系统

     Transmission system

17

变矩器型式torque    converter

YJ375

18

变速箱型式    gearbox mode

动力换档直齿常啮Power    shift normally engaged straight gear

19

档位数gear    shift

前进档4个,倒退档4个

     4 forward shift  4reverse shift

20

最高车速 maximum    speed

38km/h

驱动桥Drive axles

21

主减型式:main    reducing spiral

螺旋伞齿轮一级减速

     bevel gear grade 1reduction

22

轮边减速型式decelerating    mode

一级行星减速

     planetary reduction,grade 1

23

轴距 wheel    base (mm)

3200mm

24

轮距 wheel    tread

2250mm

25

最小离地间隙minimum    ground clearance

450mm

液压系统

     Hydraulic system

26

系统工作压力system    working pressure

17MPa

27

动臂提升时间 boom    lifting time

6.05±0.25s

28

三项和 total    time

10.8±0.5s

29

油箱容量  fuel tank capacity

300L

30

铲斗自动放平功能

     function of leveling automatically

有 yes

制动系统

     Brake system

31

行车制动 service    brake

气顶油钳盘式四轮制动

     air over hydraulic disc brake on 4 wheels

32

驻车制动 parking    brake

手动钳盘式制动    manual parking brake

轮胎

     Tyre

33

规格type    specification

26.5-25

34

前轮气压 front    tyre pressure

0.4Mpa

35

后轮气压 rear    tyre pressure

0.35Mpa
