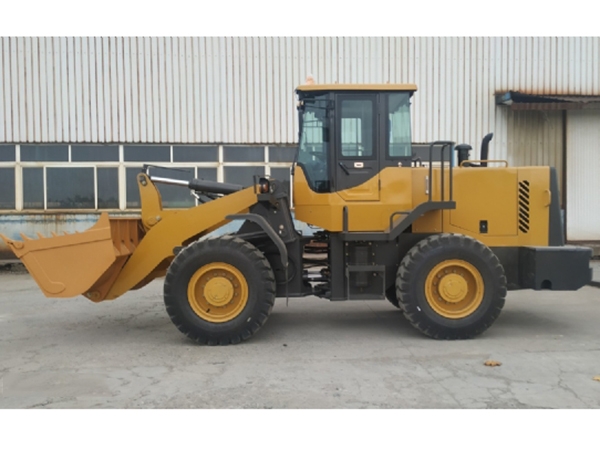

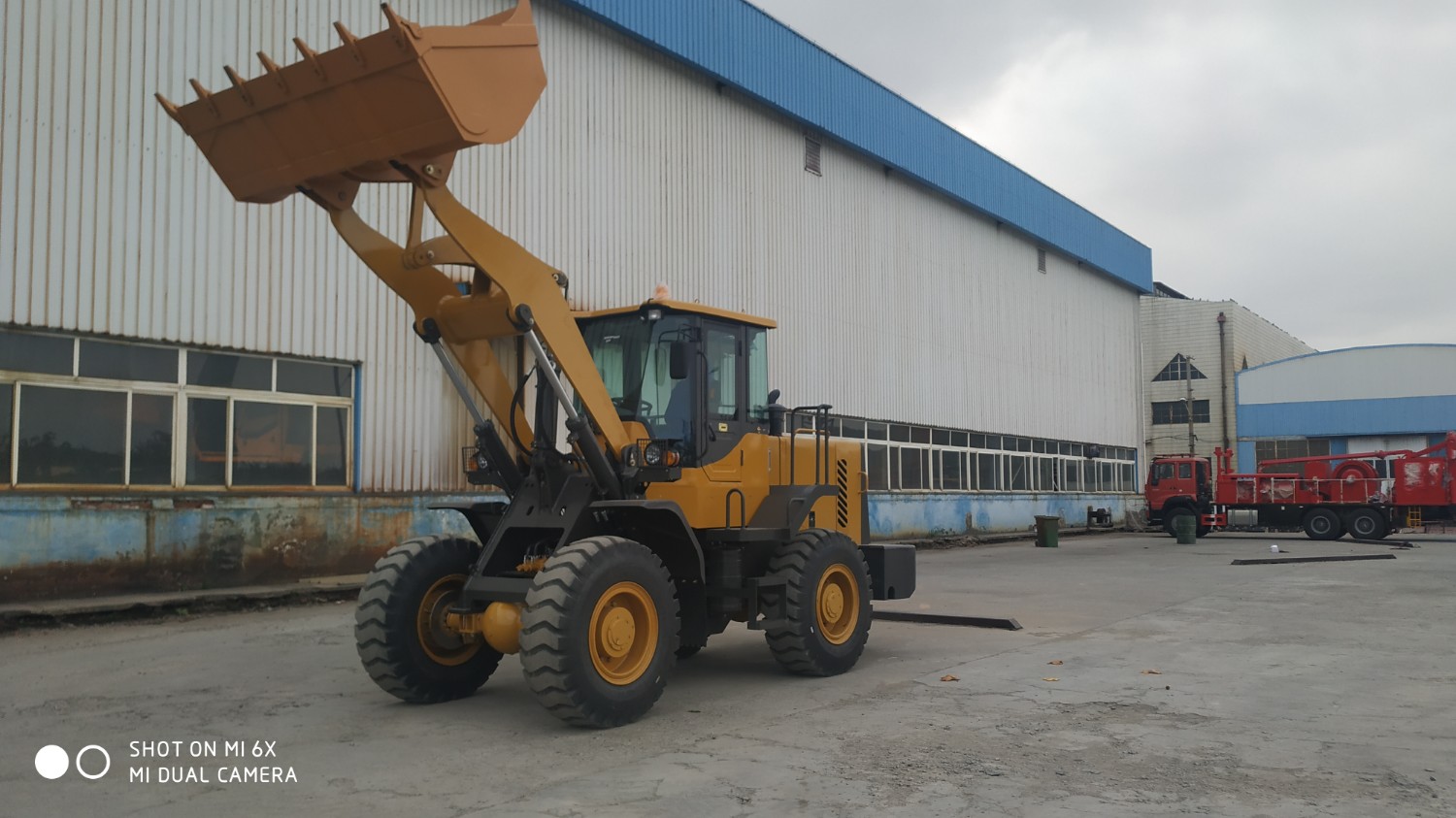

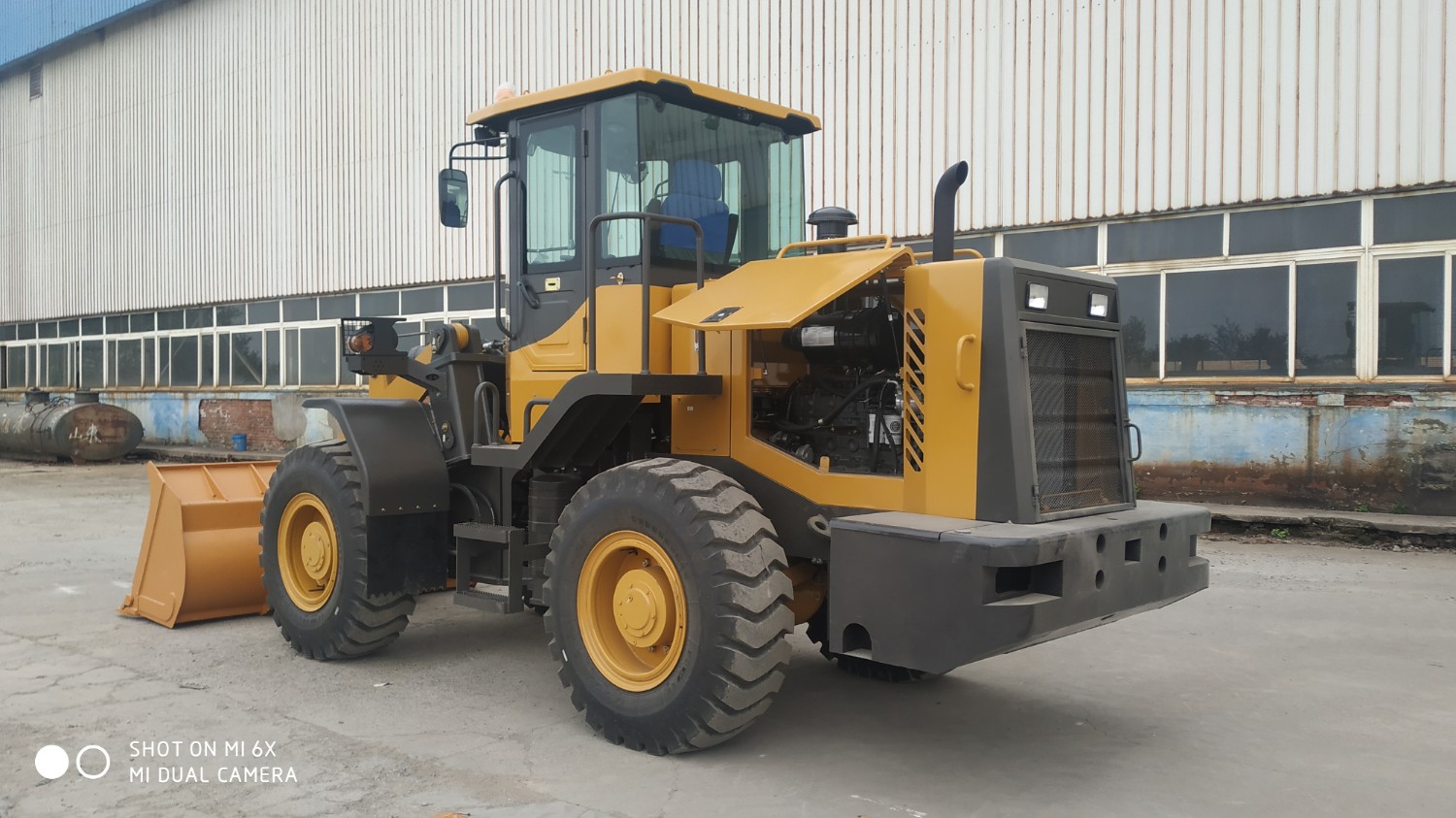

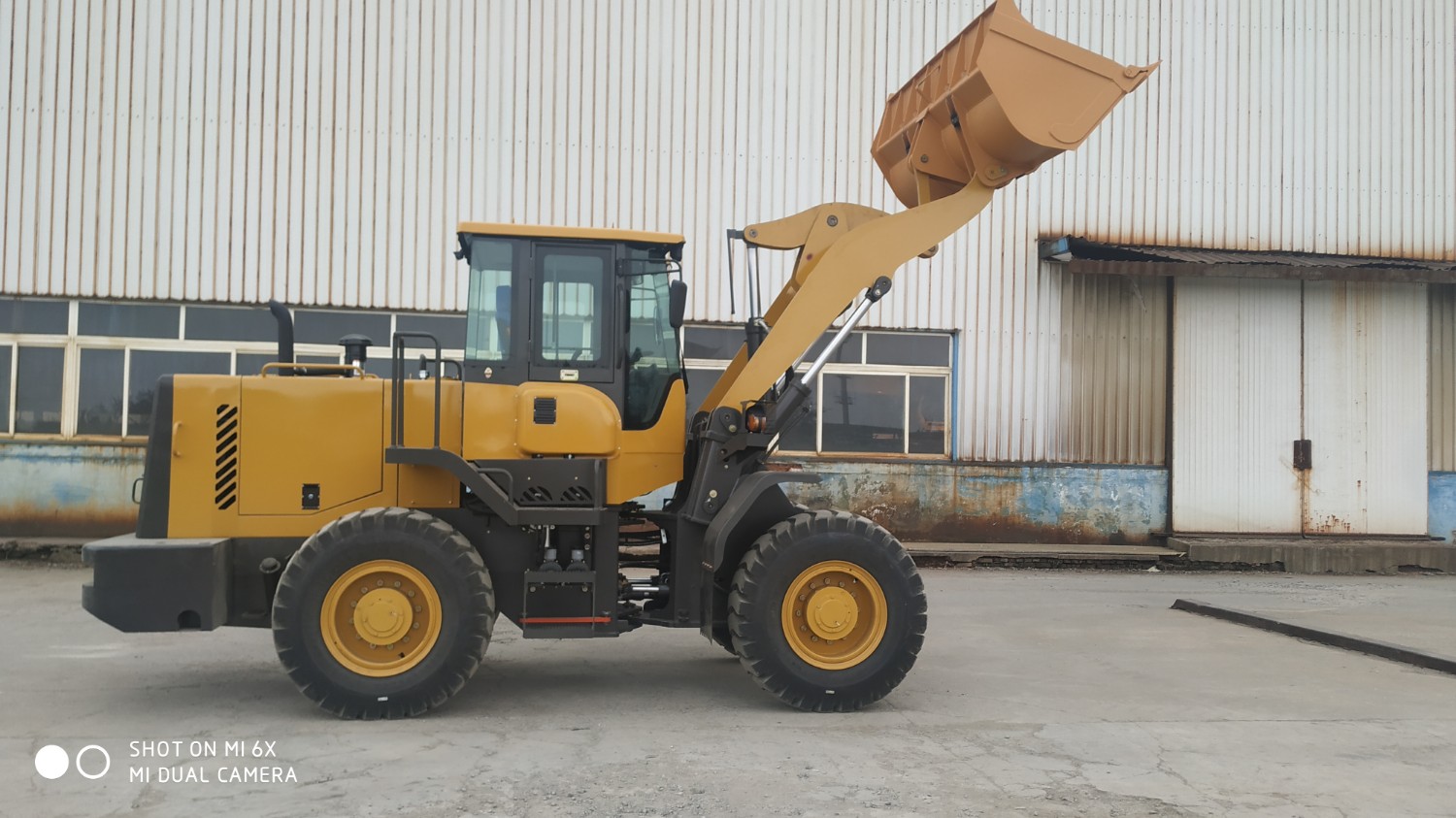

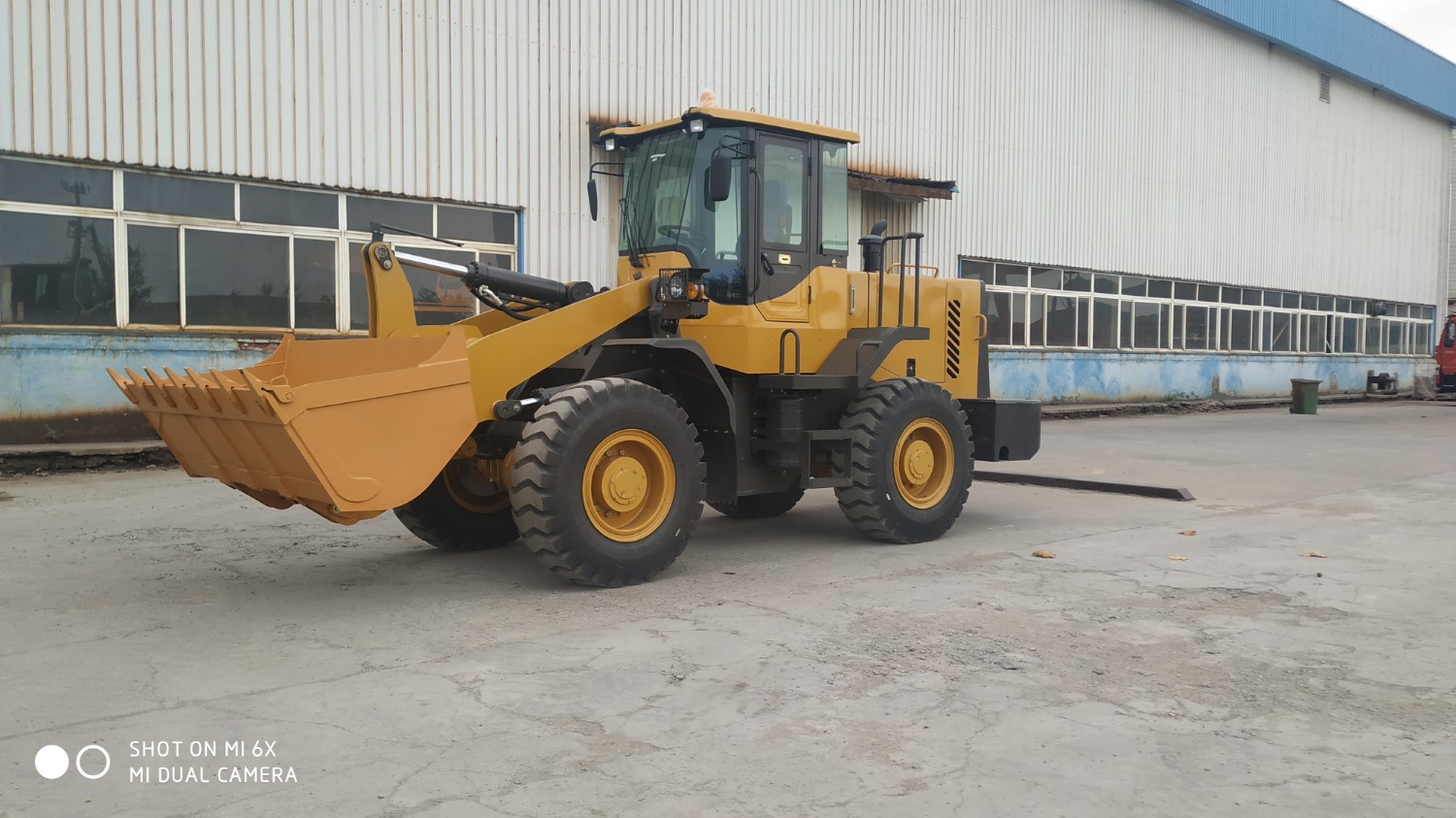

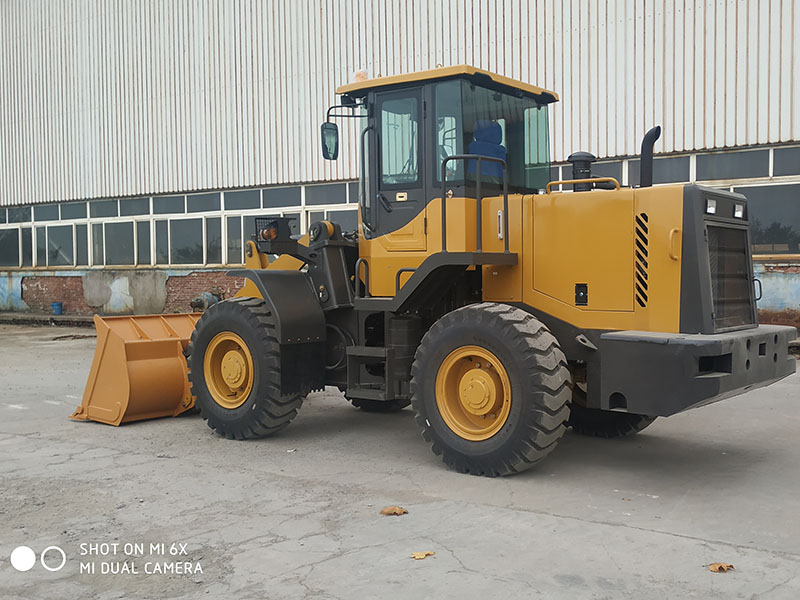

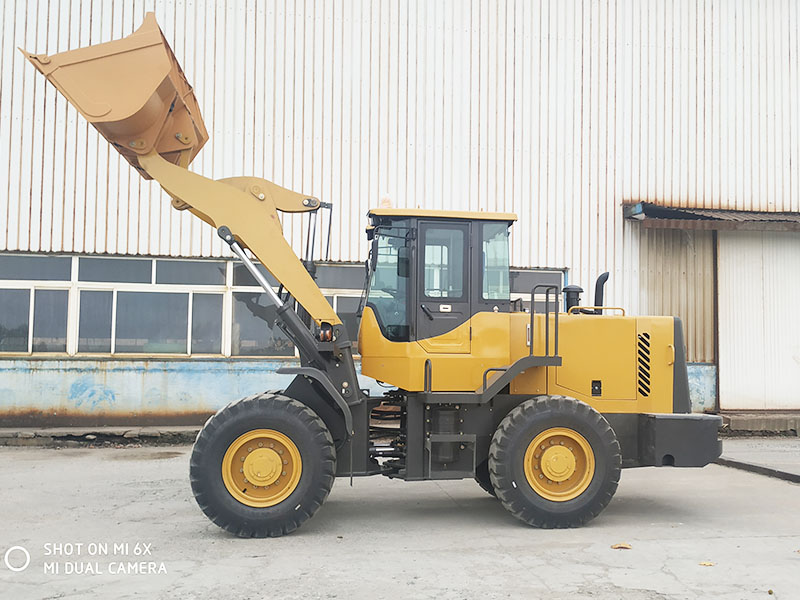

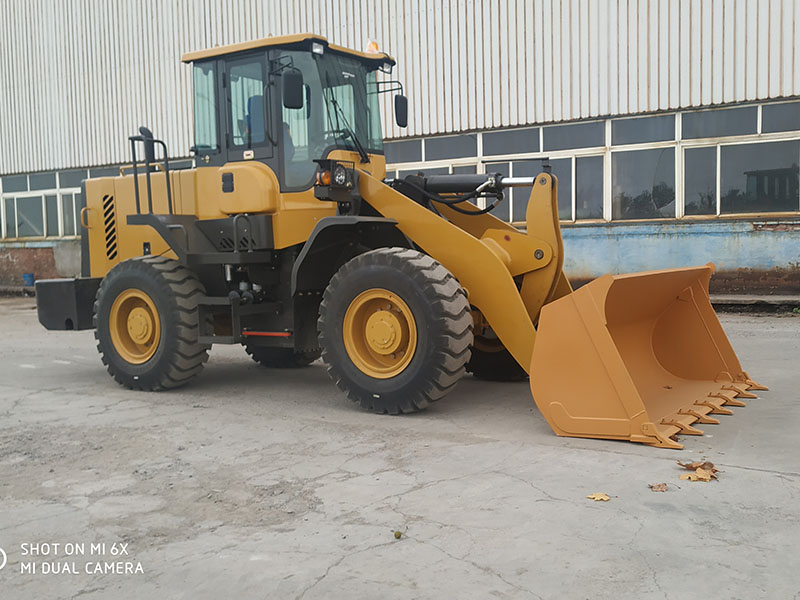

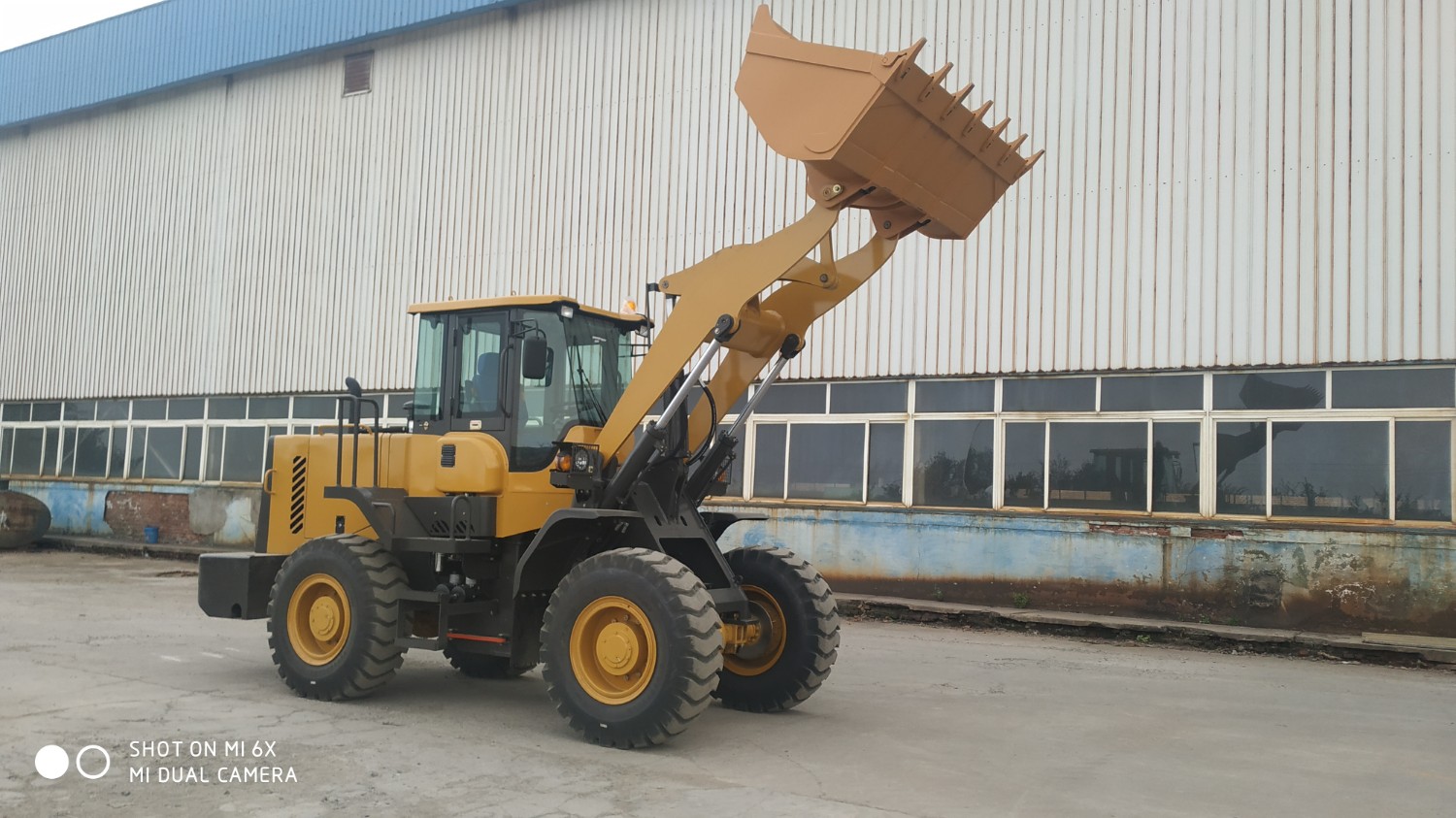

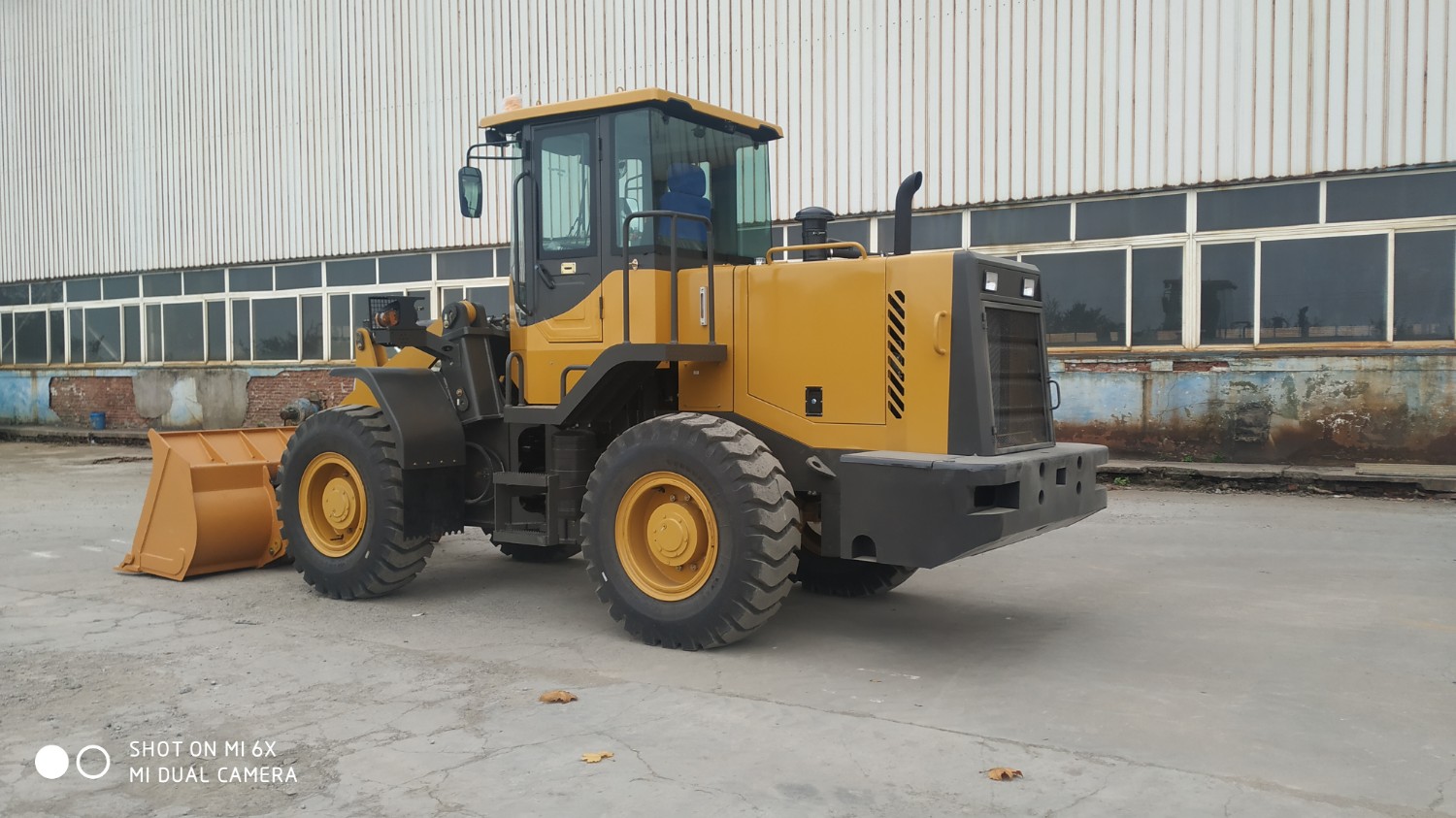

SHANMON938装载机

山东威猛工程机械有限公司

公司地址：山东省青州市南环路9567号

2019-12-7

862

信息详情

1、采用中央铰接式车架，转弯半径小，机动灵活，侧向稳定性好，便于在狭窄场地作业。Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.

2、人性化设计，视野宽阔，驾驶舒适。Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable

3、采用了气顶油钳盘式四轮制动系统保证行车安全，制动平稳，安全可靠；驻车采用钳盘式制动Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety

4、采用全液压转向，动力换档变速，工作装置液压操纵，整机操作轻便灵活，动作平稳可靠。Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable

5、双泵合流和同轴流量放大系统提高了工作效率和经济性Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy

6、折叠式大侧门钢结构发动机罩，美观大方，维修方便

The big loading engine side covers made in steel are of good appearance and suitable for maintenance

7、先导控制使操作更灵活舒适

Pilot hydraulic implement controls make operate easy and comfortable

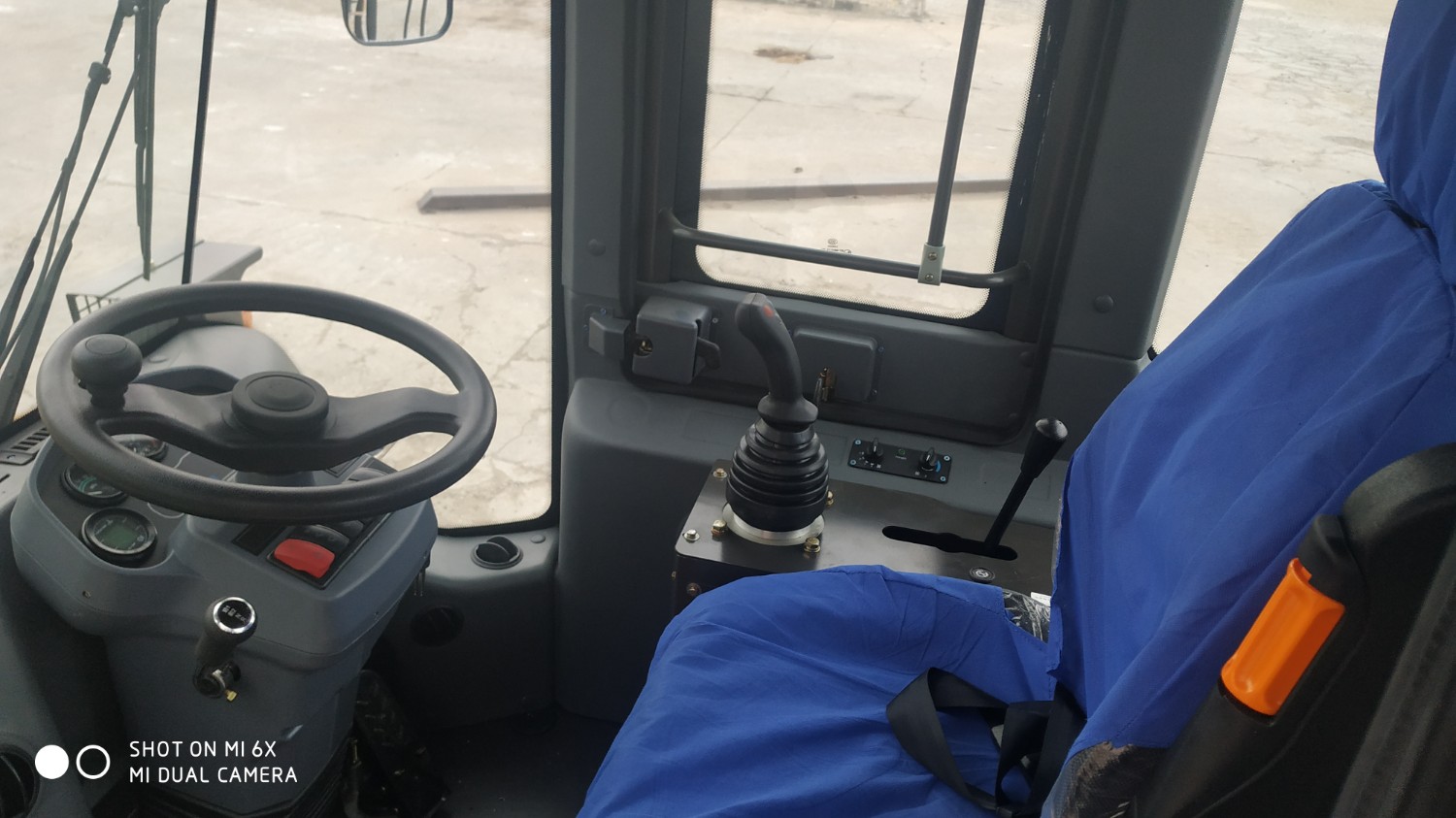

c cab, ergonomic design, pilot handle, large seat.

先进的冷却系统：水温、油温实现较佳的热平衡，提高部件及油品寿命，延长整机使用寿命。Advanced cooling system: water temperature, oil temperature to achieve the best thermal balance, improve the life of components and oil products, extend the service life of the entire machine.

Performance	1	额定载重量 rated loading	3000kg
	2	整机重量 overall weight	10500kg
	3	斗容量 bucket capacity	1.8m3
	4	最大牵引力 maximum traction force	95KN
	5	最大掘起力 maximum breakout force	127KN
	6	最大爬坡能力 maximum grade ability	30℃
	7	最大卸载高度 maximum dump height	3150mm
	8	最大卸载距离 maximum dump reach	1200mm
	9	整机外形尺寸 overall dimension (L×W×H)	711025003100mm
	10	最小转弯半径 minimum turning radius	6060mm
发动机Engine	11	型号model	Duetz TD226B
	12	型式type	直列、水冷、四冲程、直喷 Vertical, in-line, water cooled, 4-stroke diesel engine
	13	汽缸数-缸径行程NO. of cylinder-borestroke	6-108*125
	14	额定功率 rated power	92kw—2200r/min
	15	最大扭矩 maximum torque	500N.m
	16	最低燃油消耗率 min. fuel-consume ratio	≦210Kw/ h
传动系统 Transmission system	17	变矩器型式 torque converter	YJ315-X
	18	变速箱型式 gearbox mode	动力换挡power shift,
	19	档位数 gears	前进档4个，倒退档2个 4 forward 2 reverse
	20	最高车速 maximum speed	40km/h
驱动桥Drive axles	21	主减速式： main reducing spiral	螺旋伞齿轮一级减速bevel gear grade 1reduction
	22	轮边减速型式 decelerating mode	一级行星减速 Planetary reduction grade 1
	23	轴距 wheel base (mm)	2850mm
	24	轮距 wheel tread	1800mm
	25	最小离地间隙 ground clearance	370mm
液压系统 Hydraulic system	26	系统工作压力 system working pressure	18MPa
	27	动臂提升时间 boom lifting time	4.5
	28	三项和 total time	8.8±0.5s
制动系统 Brake system	31	行车制动 service brake	气顶油钳盘式四轮制动 air assist disc brake on 4 wheels
制动系统 Brake system	32	驻车制动 parking brake	手动嵌盘式 Manual disk brake
轮胎 Tyre	33	规格 type specification	17.5-25
	34	前轮气压 front tyre pressure	0.4Mpa
	35	后轮气压 rear tyre pressure	0.35Mpa
