SHANMON967装载机

山东威猛工程机械有限公司

公司地址：山东省青州市南环路9567号

2019-12-7

773

信息详情

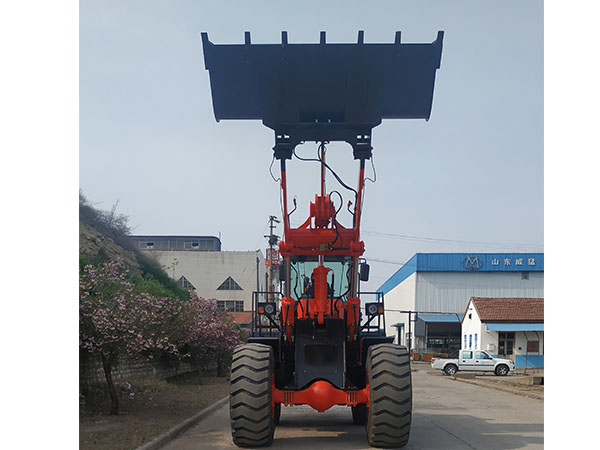

a整机照片02

一、主要特点：main feature

1、全液压先导操纵，轻便灵活，微动效果好。Full hydraulic pilot manipulation, lightweight flexible, micro excellent results.

2、双泵合流工作系统，同轴流量放大转向，节能效果显著。Double pump confluence working system, coaxial flow amplifying steering, energy-saving effect is remarkable.

3、先进的铲斗自动放平功能，操纵更加方便，降低了司机的劳动强度。dvanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.

4、大功率涡轮增压斯太尔发动机与加强加长型底盘和液压系统完美配合，性能更可靠，更节油。Advanced automatic bucket flat function, more convenient manipulation, reduce the labor intensity of the driver.

5、单翻斗缸，“Z”型转斗机构，实现巨大挖掘力。Single dump cylinders, "Z" type bucket mechanism, achieve huge digging force.

6、适合于重工况作业的驱动桥，齿轮模数大，针对大作业量恶劣工况设计，耐久性强。Suitable for the working condition of heavy homework drive axle, gear modulus, in view of the large production condition of design, strong durability.

7、加强型超大空间全景视野驾驶室，德国专业技术制造的弹簧减振优质沙发座椅，操作舒适安全。Enhanced large space of view cabin, Germany's professional manufacturing spring damping high quality sofa chair, comfortable and safe operation.

性能Performance	1	额定载重量rated load		6000KG
	2	整机重量overall weight		19400KG
	3	额定斗容 rated bucket capacity		3.3--4.5m3
	3	最大牵引力maximum tractive force		158KN
	4	最大崛起力maximum breakout force		204KN
	5	整机外形尺寸overall dimension (L×W×H)		8250×3100×3400mm
	6	最大爬坡能力maximum grade ability		30℃
	7	最大卸载高度maximum dump height		3450mm
	8	最大卸载距离maximum dump reach		1255mm
	9	最小转弯半径minimum turning radius		6500mm
发动机Engine	11	型号model		潍柴 Weichai Steyr WD10G240E21
	12	型式type		直列\水冷\干缸套\直喷 lnline water cooling dry cylinder injection
	14	气缸数-缸径×行程No. of cylinder-bore/stroke		6－126×130mm
	16	额定功率rated power		175kw--2200r/min
传动系统 Transmission system	17	变矩器型式torque converter		双涡轮四元件
	18	变速箱型式 gearbox mode		行星式Planectary
	19	档位数gear shift	前进档2个2 forward shift	倒退档2个1 reverse shift
	20	最高车速 maximum speed		38km/h
驱动桥Drive axles	21	主减型式：main reducing spiral		螺旋伞齿轮一级减速 bevel gear grade 1reduction
	22	轮边减速型式decelerating mode		一级行星减速 planetary reduction,grade 1
	23	轴距 wheel base (mm)		3350mm
	24	轮距 wheel tread		2250mm
	25	最小离地间隙minimum ground clearance		450mm
液压系统 Hydraulic system	26	系统工作压力system working pressure		18MPa
	27	动臂提升时间 boom lifting time		6.15+0.25s
	28	三项和 total time		10.65+0.5s
	29	油箱容量 fuel tank capacity		300L
	30	铲斗自动放平功能 function of leveling automatically		有 yes
制动系统 Brake system	31	行车制动 service brake		气顶油钳盘式四轮制动 air over hydraulic disc brake on 4 wheels
	32	驻车制动 parking brake		手动环毂式制动 manual parking brake
轮胎 Tyre	33	规格type specification		26.5-25
	34	前轮气压 front tyre pressure		0.4Mpa
	35	后轮气压 rear tyre pressure		0.35Mpa
